Name: 4 Channel Dimmable C/W Style Switch & Remote, 700W/Ch, 6A Fused, IP54, 200m Range
Brand: Wise Controls
SKU: WISEDIMKIT
Price: 546 GBP
Availability: InStock

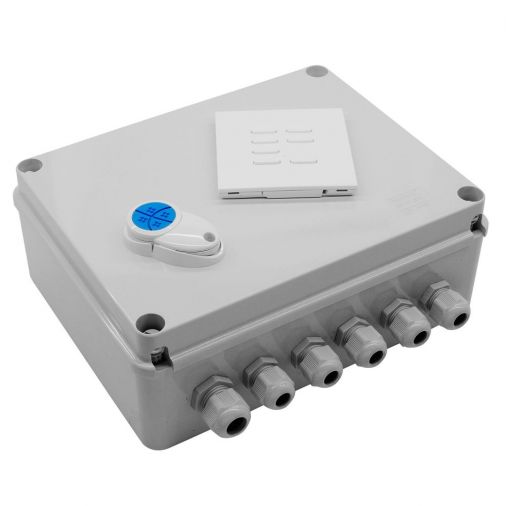

The wise dim kit (code: wisedimkit) from wise controls is a wireless dimmer system that contains all the components required to achieve wireless lighting control. The kit includes a receiver with four independent 700 watt dimmer channels, a 4 button remote keyfob and a 7 button wall switch to control the circuits. The receiver will return to its previous dimming levels when switched on again and any circuit can be changed from dimming to switching with the use of a dipswitch. The kit is fused individually with a 6 amp fuse to protect all the circuits from overloading. The 7 button wall switch allows basic scene setting capabilities with the three bottom buttons performing the functions 2 circuits on, 4 circuits on, and all the circuits off. Dimensions: height = 198mm, height (including glands) = 227mm, width = 256mm, depth = 100mm, max wattage/circuit = 700 watts, min wattage/circuit = 60 watts, max wattage = 2800 watts, voltage = 240v, ip rating = ip54, range = 200m.

The wise dim kit can be programmed with the 'p1' button for circuit one, 'p2' for circuit two, 'p3' for circuit three and 'p4' for circuit four. The 'p5' button programs all circuits to switch on/off and can be used with a 7 button switch (uses the three bottom buttons on the switch) or a 2 or 4 button switch (uses two of the buttons on the switch). The kit also includes a plug-in booster to amplify and repeat the signal giving 150 metres range from the booster. The warranty is 1 year, this covers manufacturing defects.

4 Channel Dimmable C/W Style Switch & Remote, 700W/Ch, 6A Fused, IP54, 200m Range
